INDIRECT DIESEL FAN HEATER 50KW

$2129.68

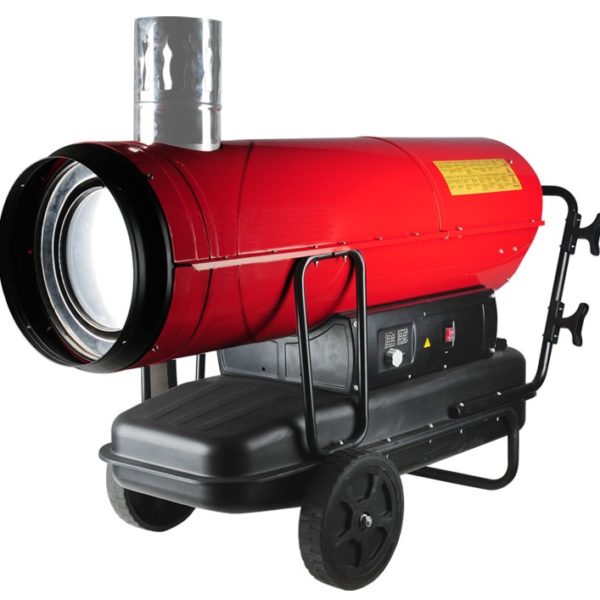

The powerful Fanmaster 50KW (170,600 BTU) Indirect Fired diesel heater produces an instantaneous heat that uses a flue system positioned on top of the heater to allow the fumes to escape which creates a cleaner dry heat which is ideal for confined spaces or areas with limited ventilation. Ducting can be attached to the flue to exhaust the fumes out

  • Unit functions on both Diesel or Kerosene
  • Run time 14hr
  • Danfoss Fuel Nozzle & Gear Pump
  • Two stage fuel filter
  • Stainless steel combustion chamber with fan cooling
  • Cut off protection; flame sensor; if no fuel heater will cut out
  • Portable on wheels
Part No.IDH2-50IN
Heat Output (K/W)

(BTU)

50

170,600

Heating TypeIndirect Fired
Air Flow (L/S)555
Motor (K/W)0.75
Voltage240
Current (A)3.2
Plug Connection3 Pin 10amp
Heating Area (m2)500
Tank Size (L)69
Consumption (L/H)4.7
Pressure (PSI)10.5
Fan Speed1
Heat Settings1
Weight (kg)59/65
Dimensions (mm)(W)1370x(D)560x(H)995
Packaging (mm)(W)1275x(D)505x(H)795



1 Year
